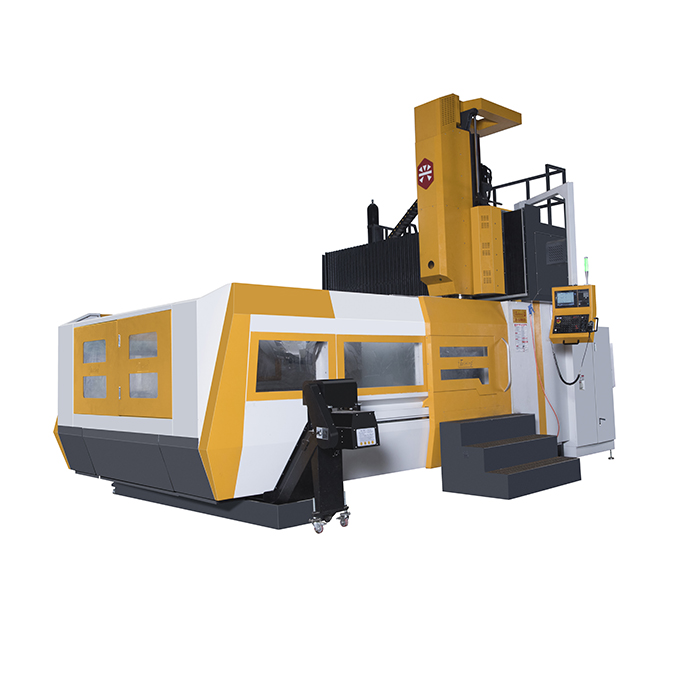

※ 机床采用龙门定梁框结构，长久保持良好的刚性和精度，扭矩大，动态特性佳，根据加工需求充分吸收了国际先进机床设计理念。 ※ 关键件包括床身、立柱、横梁、滑鞍、滑枕、工作台等均选用高强度树脂砂造型，高强度优质铸铁，可耐重切削并长期保持精度，稳定性高。 ※ 热对称主轴箱，高精度角接触轴承安装于主轴头部和尾部，有效确保刚性和精度。采用加大直径和厚度的主轴，进一步增强刚性。主轴选用大功率电机驱动，大马力，高扭矩，即使在低转速状态下也可以实现高精度的重切削。 ※ 进给系统采用加大直径、预拉伸的滚珠丝杆，增加丝杆刚性并能有效防止丝杆热变形。 ※ 螺旋式与链式自动排屑结构相结合，确保排屑的顺畅。 ※ X/Y轴采用进口超重负荷线性导轨，Z轴采用矩形淬 硬贴塑导轨，低磨损，高负载，确保机床的长期使用精度，可大幅提高切削时的精度与刚性。 ※ 主轴中心距Z轴导轨面距离短，大大减少翻转力矩，提高刚性。主轴采用模块化设计，多种功能模块供客户选择，适用多种类型加工。 ※ X/Y/Z轴选用C3进口滚珠丝杆，两端固定支撑，采用无齿轮隙增扭矩同步带传动，输出扭矩大，移动速度快，加工性能好；预拉伸结构，采用高精度大接触角精密轴承支撑，具有极高的移动精度和极佳的热稳定性。 The machine adopts gantry fixed beam frame structure, which can keep good rigidity and precision for a long time. It has large torque and good dynamic characteristics. According to the processing demand, it fully absorbs the international advanced machine tool design concept. Key parts including the lathe, column, beam, wagen, ram, workbench, etc., are made of high strength resin sand, high strength and qualified cast iron, which can withstand heavy cutting and maintain long-term accuracy and high stability. Thermally symmetric headstock and high-precision angular contact bearings are mounted on the head and tail of the spindle, effectively ensuring rigidity and accuracy. The spindle with enlarged diameter and thickness is adopted to further enhance rigidity. The spindle is driven by high-power motor with high power and high torque, which can achieve high-precision heavy cutting even at low speed. The feed system adopts ball screw with enlarged diameter and pre-stretched, which can increase the rigidity of the screw and effectively prevent the thermal deformation of the screw. Screw and chain automatic chip removal structures are combined to ensure smooth chip removal. X/Y axis adopts imported heavy load linear guide rail, Z axis adopts rectangular hardened plastic guide rail, low wear, high load, to ensure the long-term usage of machine tool precision, and significantly improve the cutting precision and rigidity. The distance between the center of the spindle and the guide surface of Z axis is short, which greatly reduces the turning torque and improves the rigidity. The spindle adopts modular design with a variety of functional modules for customers to choose, and id suitable for various types of processing.. The X/Y/Z axis adopt C3 imported ball screw, and both ends are fixed and supported. It also uses gearless torque increasing synchronous belt transmission with high output torque, fast moving speed, and good machining performance. Pre-tensile structure, supported by high-precision high-contact angle precision bearings, with high movement accuracy and excellent thermal stability.
15989519333 (许先生)
在线咨询 留言咨询| 主要技术参数 | ||||
|
机械规格 |
名称 |
规格 |
单位 |
|
|
行程 |
X 轴行程 |
3200 |
mm |
|
|
Y 轴行程 |
2500 |
mm |
||
|
Z 轴行程 |
1000 |
mm |
||
|
主轴鼻端至工作台面距离 |
250-1250 |
mm |
||
|
龙门宽度 |
2500 |
mm |
||
|
工作台 |
工作台尺寸 |
2200×3000 |
mm |
|
|
[敏感词]荷重 |
7 |
T |
||
|
T 型槽（槽数-尺寸-间距） |
11-22×180 |
mm |
||
|
主轴 |
主轴转速 |
6000 |
rpm |
|
|
主轴刀柄形式 |
BT-50 |
|||
|
主轴直径 |
Ø200 |
mm |
||
|
传动方式 |
皮带式 |
|||
|
进给速度 |
快移速度X/Y/Z |
8 / 8/ 10 |
m/min |
|
|
切削进给速度 |
1~8000 |
mm/min |
||
|
机器精度 |
X/Y/Z 轴定位精度 |
±0.005/300 |
mm |
|
|
X/Y/Z 轴重复精度 |
±0.01 |
mm |
||
|
马达 |
主轴马达 |
22 |
KW |
|
|
X 、Y、Z 轴驱动马达 |
40/40/40 |
NM |
||
|
油泵 |
950 |
W |
||
|
刀库(选配) |
刀库容量 |
24 |
支 |
|
|
自动换刀型式 |
圆盘刀臂式 |
|||
|
刀柄规格 |
BT-50 |
|||
|
刀柄拉钉 |
45 |
度 |
||
|
[敏感词]刀具长度 |
300 |
mm |
||
|
[敏感词]刀具直径 |
满 刀 |
Ø110 |
mm |
|
|
邻空刀 |
Ø200 |
mm |
||
|
[敏感词]刀具重量 |
18 |
kg |
||
|
换刀时间 |
4 |
sec |
||
|
占地空间 |
机械高度 |
4200 |
mm |
|
|
占地空间（长 × 宽） |
8800*5200 |
mm |
||
|
机械重量 |
40 |
T |
||
|
电气总容量 |
50 |
KVA |
||
|
气压需求 |
0.5 ~ 0.8 |
MPa |
||
